VA3TO 10GHz Portable Station


Click on thumbnails for full size pictures.
Close picture window to return here.


Front | Internal | Mount1 | Mount2





Equipment details:

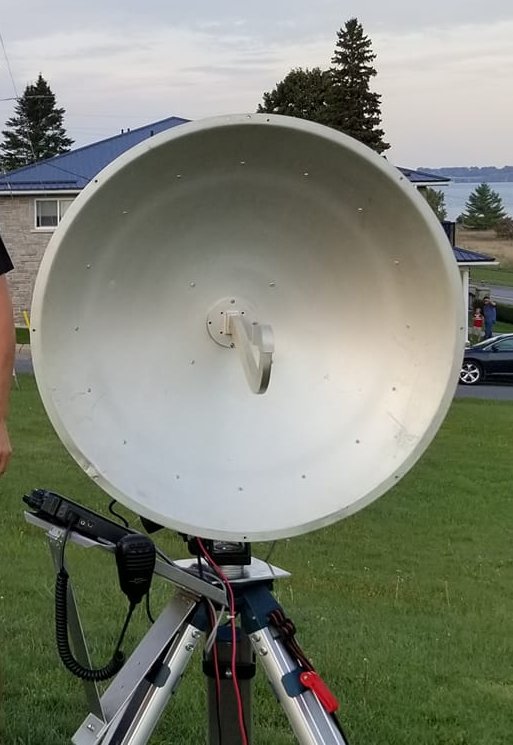

Dish: 24" prime focus Macom with integral waveguide crook feed.

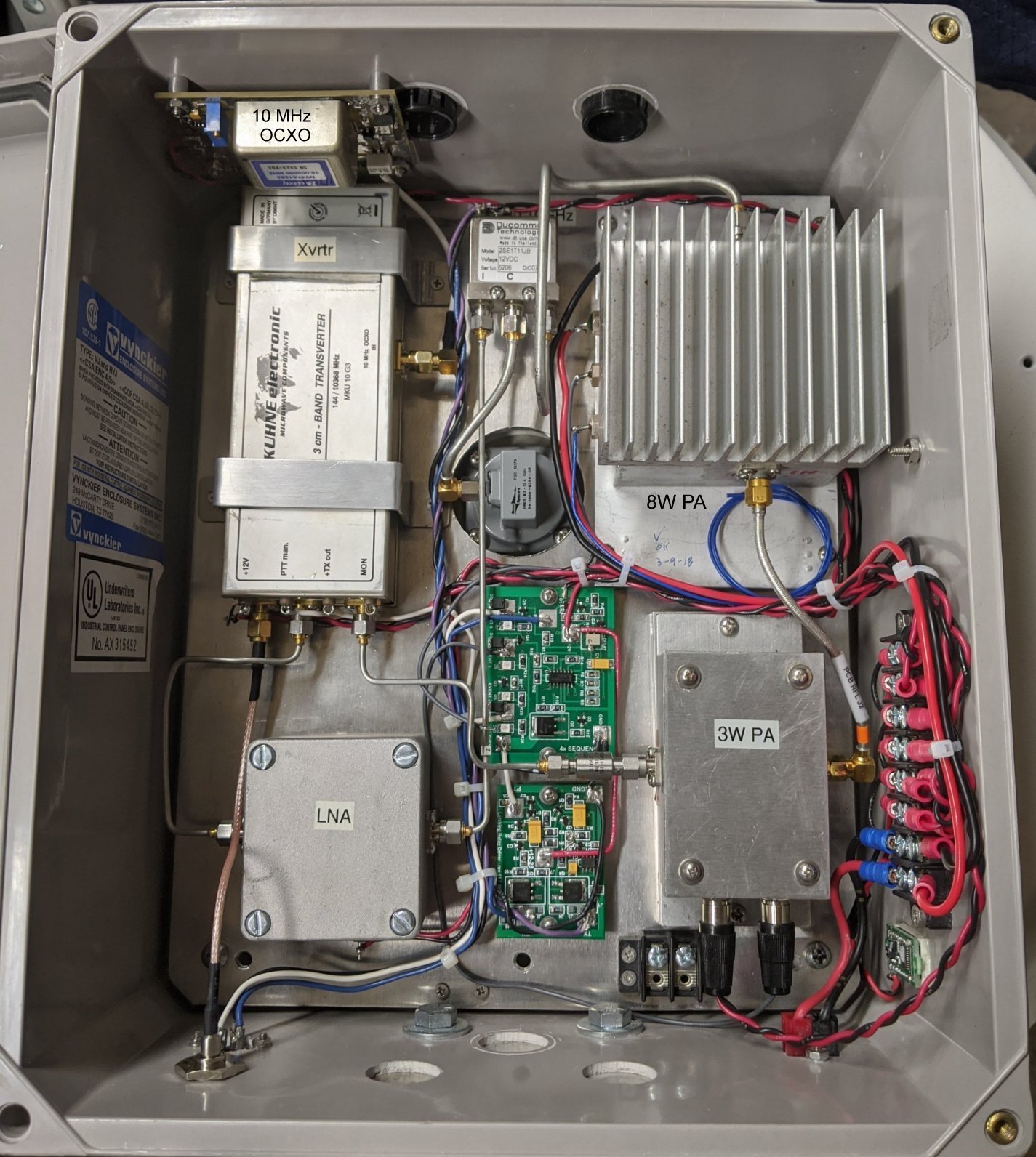

Transverter: DB6NT/Khune MKU 10 G3.
LNA: Downeast Microwave W5LUA design 3-2 ULNA kit. 22dB Gain/ 1.1dB NF.
Driver PA: Downeast Microwave 3-3 23dB Gain/ 2.5 Watts.
Final PA: Downeast Microwave 3-8 >6dB Gain/ 8 Watts.
Sequencer: W6PQL 4 event sequencer kit w/ W6PQL latching relay driver kit.
10 MHz Reference OCXO: Bliley NV47A1282.
I.F. Rig: Icom IC-705 @ 144 MHz.


Accomplishments to date:

Distance (CW - Rain Scatter): 726km - VA3TO in grid FN03CN to K1RZ, AF1T, W1MKY & K3WHC in grid FN41EE.

Distance (CW - Airplane Scatter): 645km - VA3TO in grid FN45bc to VA3ELE in grid FN03DM.

Distance (CW - Tropo): 618km - VA3TO in grid FN35QI to VE3KH in grid FN03CG.

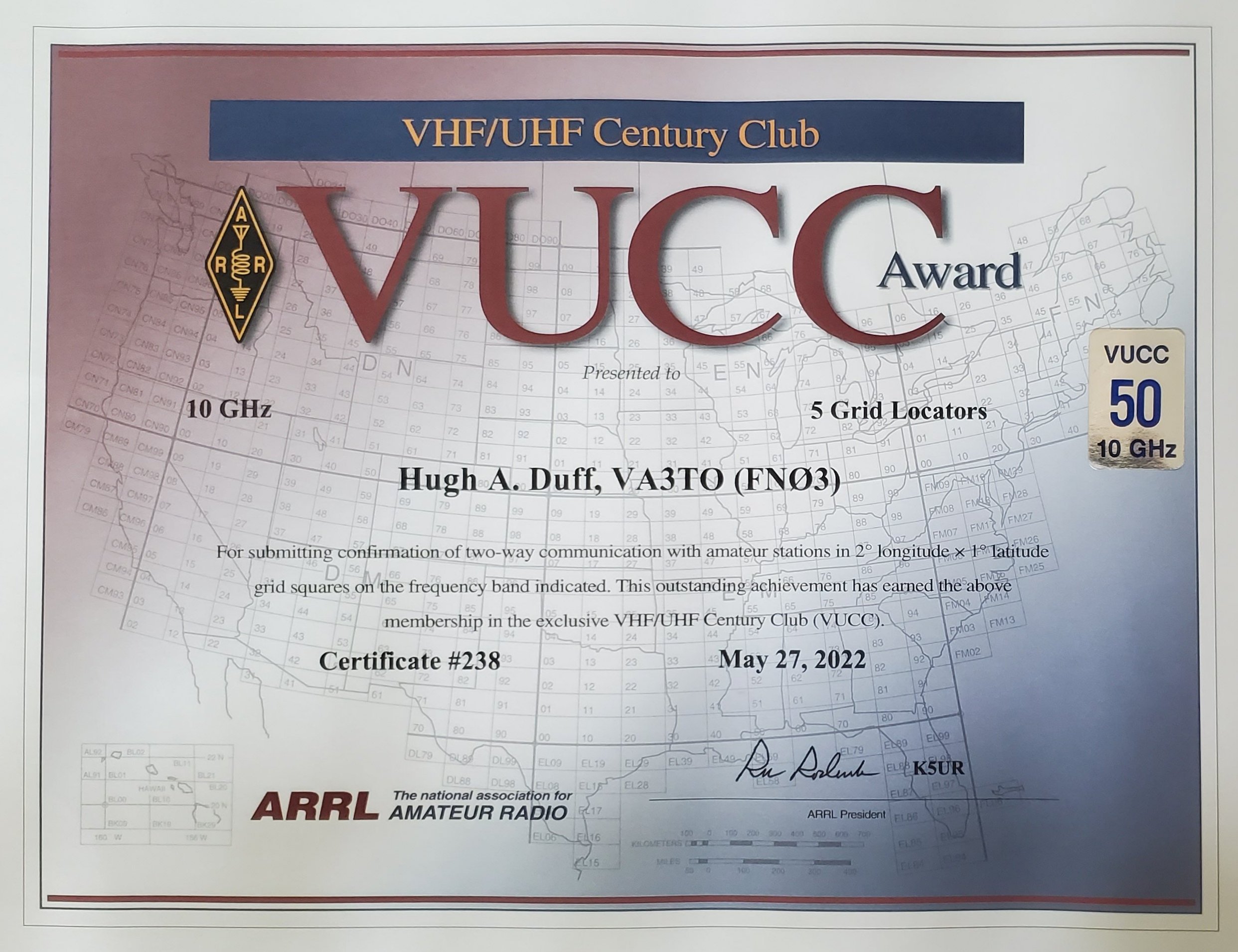

10GHz VUCC: 50 Grids from grid FN03CN, all analog modes (CW/SSB).

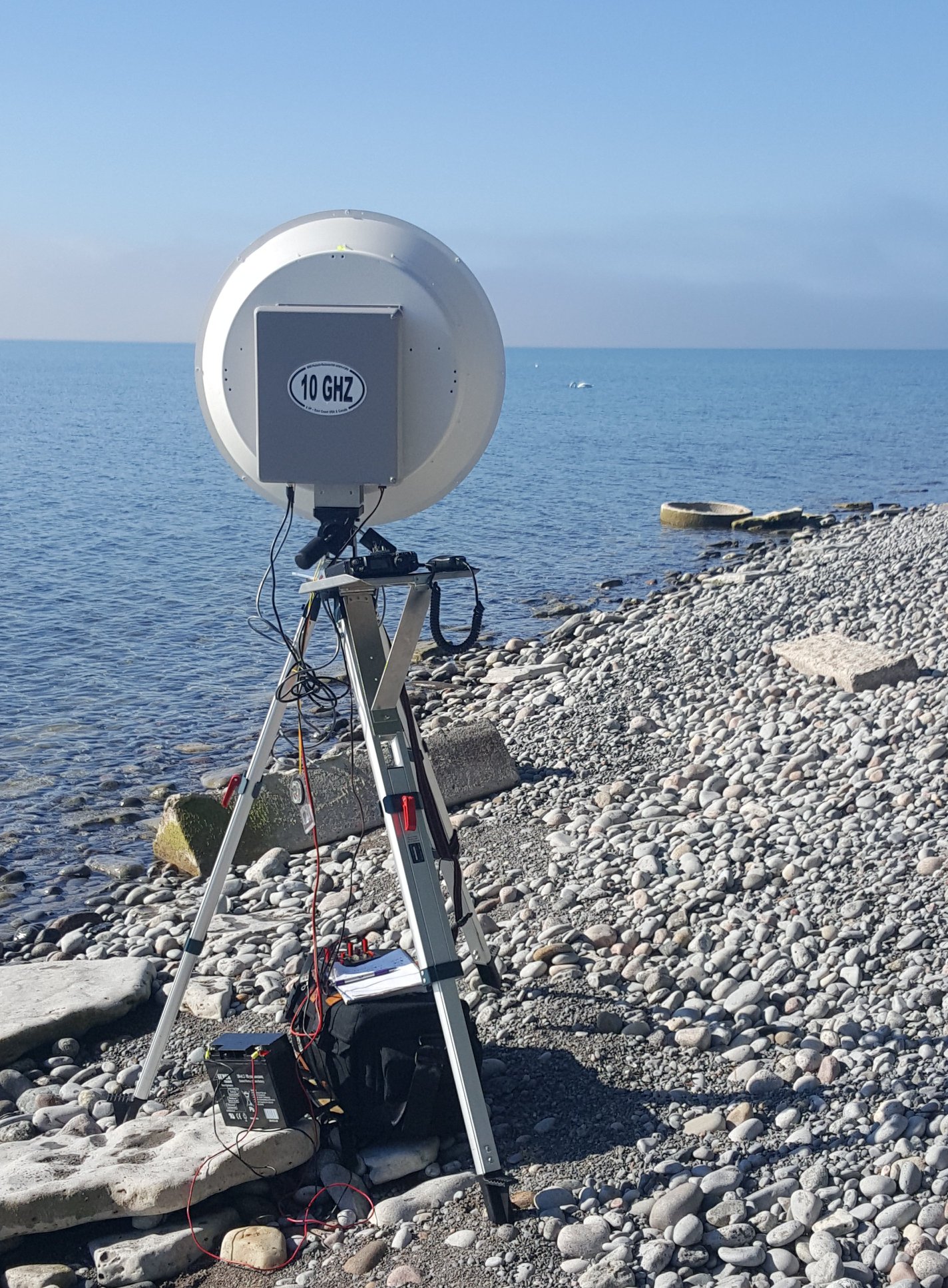

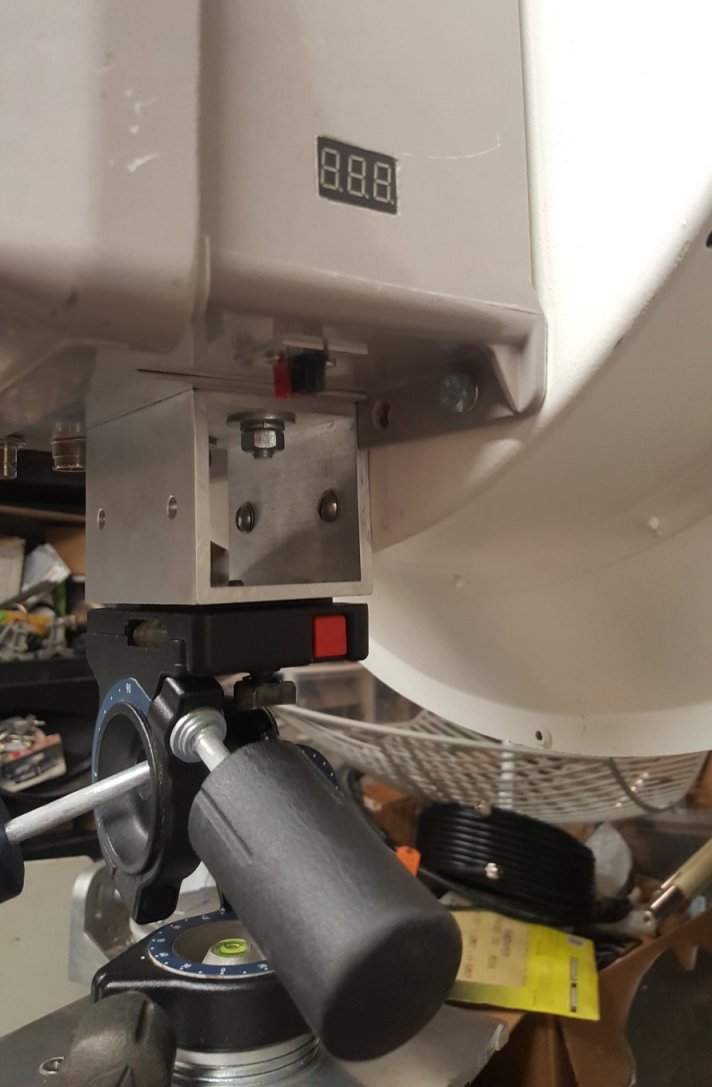

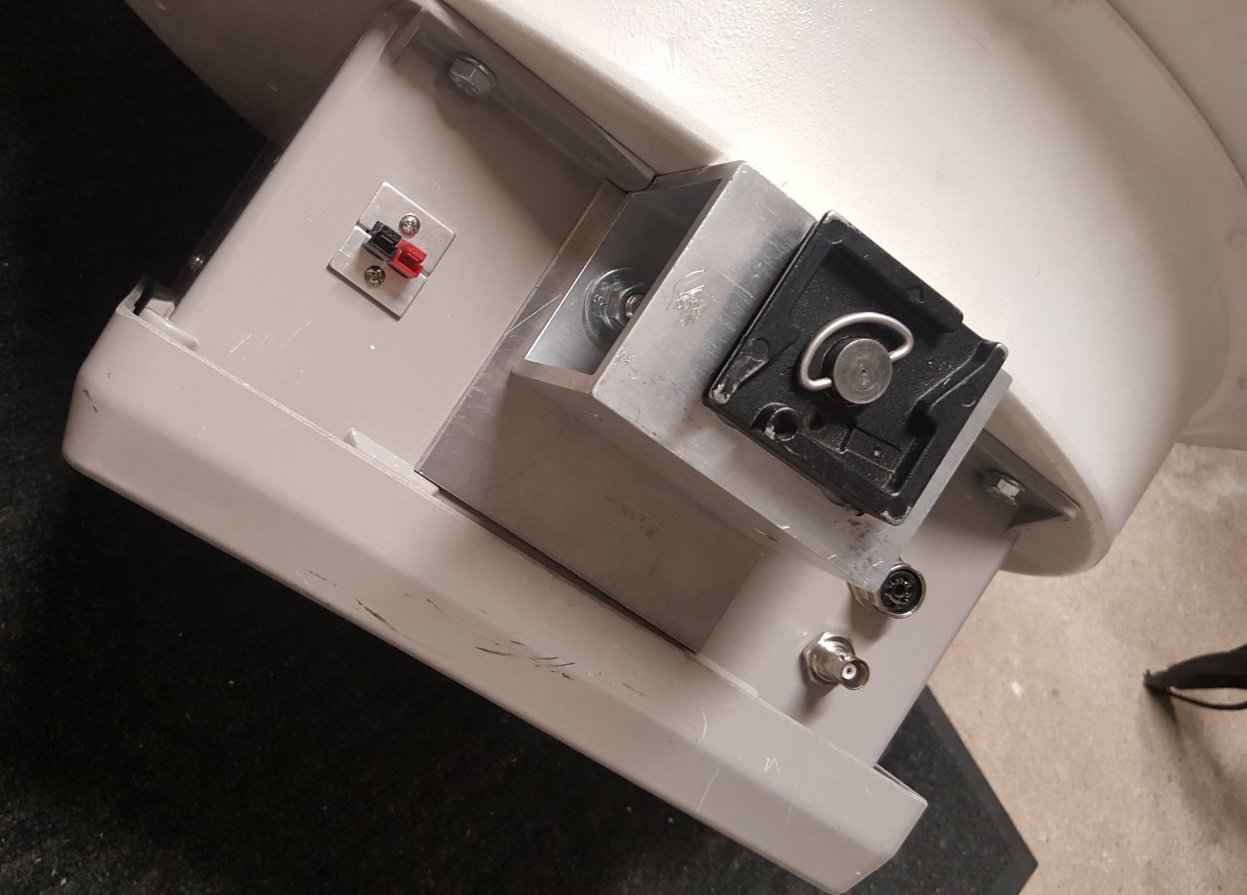

During the 2015 10 GHz & Up Contest my old dish was blown over and badly damaged by high winds. The dish was bent beyond repair so I decided to rebuild using a very efficient 24" Macom dish which is far more manageable than the unweildy 36 incher. I also put the electronics in a weatherproof NEMA box. My original dish used a speaker tripod that wasn't very stable so I bought a surveyor's tripod and adapted it to use a heavy duty Manfrotto 3-axis camera mount. The improvements from lessons learned resulted in a nice compact and weatherproof unit that quick-mounts to the tripod for relatively fast set-up and tear-down. The rebuilt station uses most of the same components from my original station with the addition of a Bliley 10 MHz OCXO which made a big difference. After an initial 3 minute warmup there is no perceivable drift and I'm always bang on frequency. I also added an 8W DEMI PA. The new system has been performing very well.


Some of my microwave QSOs were recorded and posted to Youtube: uWave QSO Videos

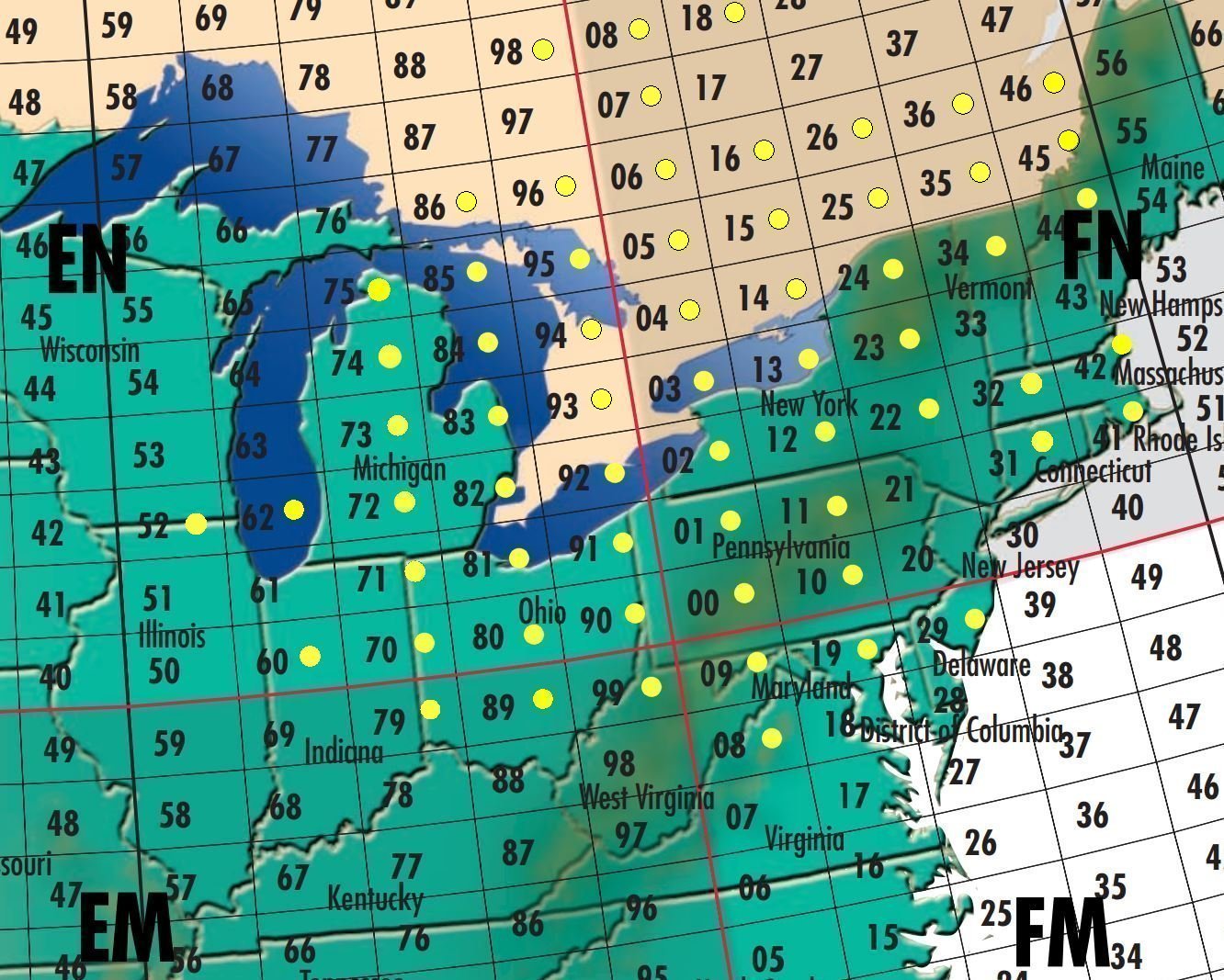

Grids Worked from FN03CN
